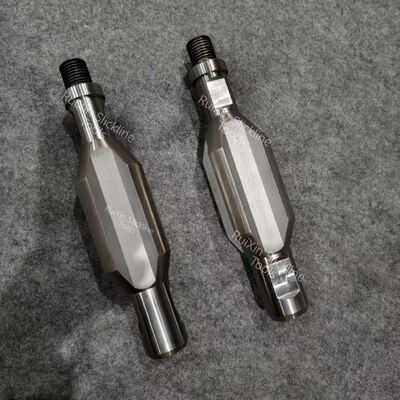

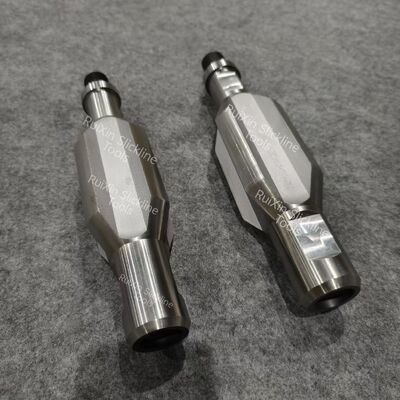

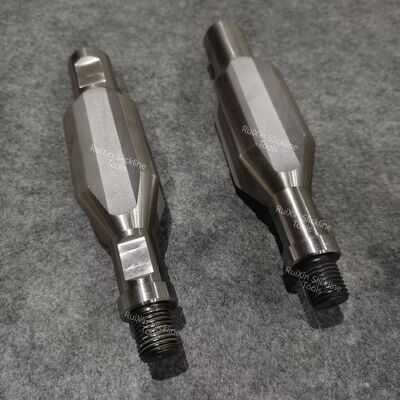

Wireline 2.55Inch Fluted Centralizer 17-4PH Slickline Tools

 Wireline   2.55Inch Fluted Centralizer  17-4PH Slickline Tools

Introduction

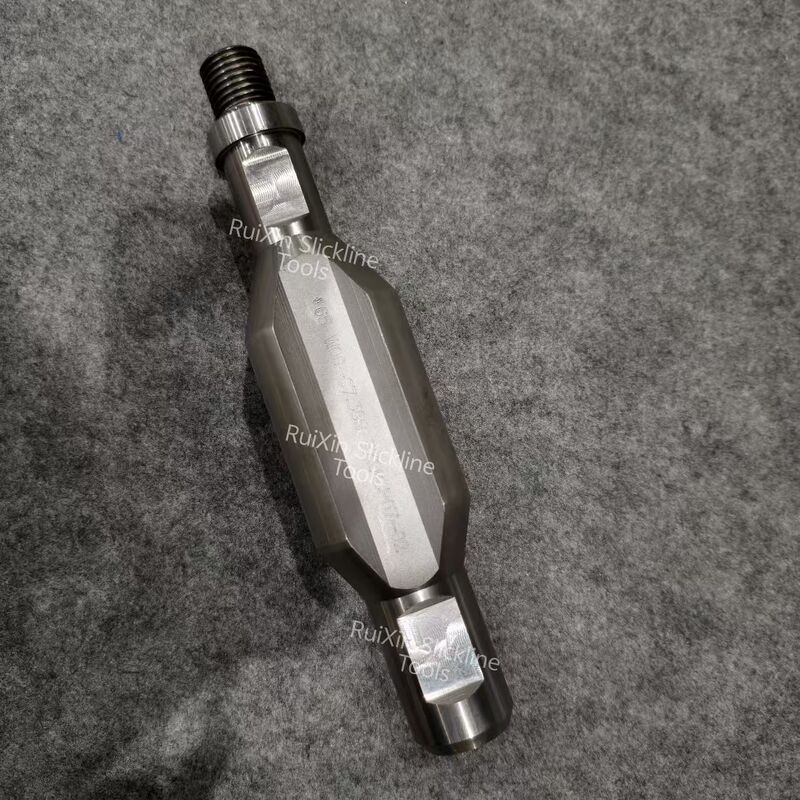

      The  fluted centralizer tool is a basic tool used in large pipe column wells when operating with small-diameter tools to provide alignment and stabilization. It is also known as a rigid alignment tool.

       The fluted centralizer tool has a simple structure. The upper part is equipped with a standard external fishing neck + thread for connecting the upper tool string; the lower part has a standard internal thread for connecting the lower tools; the threads on the upper and lower parts are of the same specification.
The middle outer diameter of the slot alignment tool is larger than the diameters at both ends and is also larger than the outer diameters of other downhole tools. The external part is machined with an overflow groove (hence the name slot alignment tool) to allow fluid to pass through during the downhole operation to prevent top drilling.

Technical specification

Any size can be customized according to customer requirements.

Usage instructions:

1. Connect the slot straightener to the upper and lower parts of the weighting rod (at least two straighteners are required for each tool string);

2. If a shock hammer is lowered into the well, a straightener should also be connected to the lower part of the shock hammer;

3. Before each lowering operation, tighten the threads;

4. Select the appropriate diameter of the straightener based on the pipe string conditions.

◆About Baoji RuiXin Slickline Tools

Baoji Ruixin Energy Equipment Co., Ltd. was established in 2012. It is an IS0: 9001-2015 and API Q1 system certified technology research and development organization specializing in the design and manufacture of steel wire, cable and coiled tubing tools. With strong new product research and development capabilities, it has obtained 12 national utility model patent certificates and 1 invention patent certificate. Undertook two prefecture-level and provincial-level scientific research projects. Our products include wireline wireline wellhead blowout prevention equipment, wireline downhole tools and coiled tubing downhole tools. At present, we have provided professional equipment and technical support to more than 50 oilfield service companies in various regions at home and abroad.

◆Strict quality control system

Steel wire working tools are certified by API, and all manufacturing are strictly in accordance with API system, including quality control management, environmental management and occupational health and safety management. For each wire working tool and each part, we have achieved traceability from raw materials, production process to product shipment.

◆Hard work, after-sales service

On-site technical guidance exchanges with each other. Our sales and technical personnel communicated well with front-line engineers and technical experts on the job site, and solved technical problems such as material selection, sealing structure optimization, and accident handling in complex environments. And carried out many technical exchanges and friendly cooperation. We have done a good job of product after-sales service for customers, and we provide customers with more satisfactory services. We would like to thank more and more customers for their support and trust. In the future, we will do better.

Welcome to contact us at any time.
