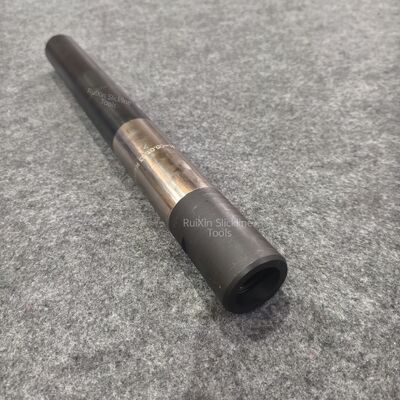

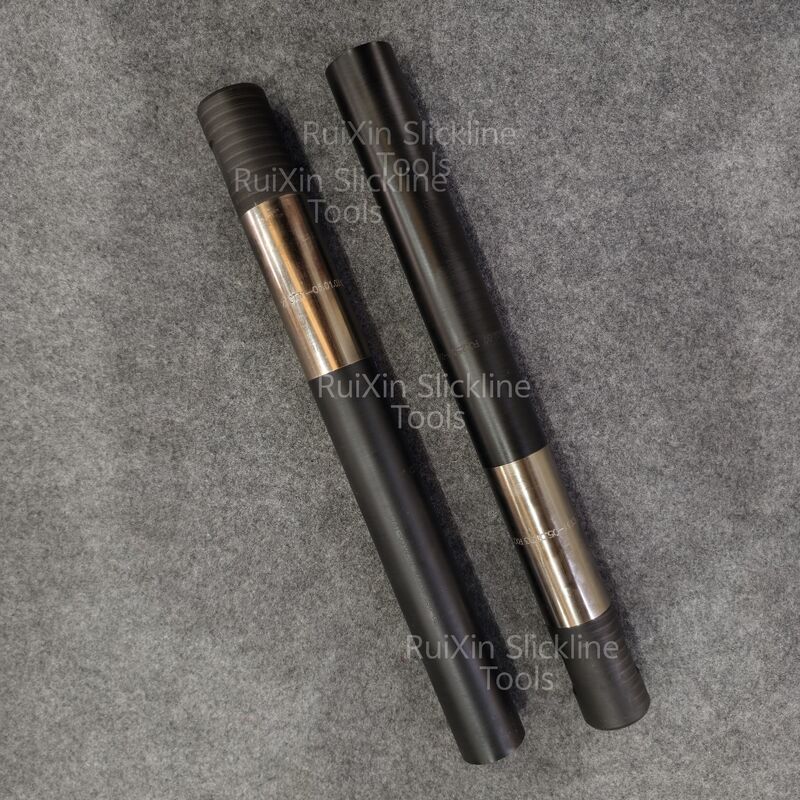

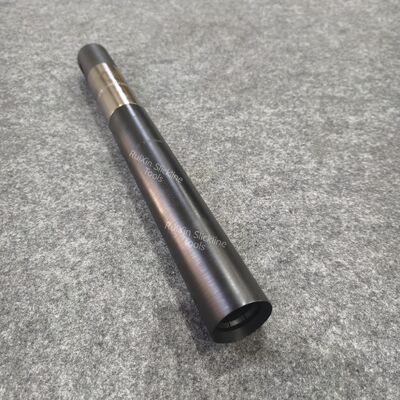

Coiled Tubing Hydraulic Heavy-Duty Pulling Tools - 2 Inch 35Mpa Slickline Tools
The continuous tubing hydraulic heavy-duty pulling tool is a specialized drop-and-raise tool designed for retrieving tools or instruments with external fishing necks, including balance rods, plugs, and throttles. This equipment is primarily used to address downhole incidents such as coiled tubing detachment or sticking incidents.
Product Specifications
| Size |
2 Inch |
| Grab Distance |
100mm |
| Operating Mode |
Hydraulic Pressure |
| Connecting Thread |
1 Inch AMMT |
| Working Pressure |
5000 PSI |
| Salvage Diameter |
1.375 Inch |
| Test Pressure |
52 Mpa |
| Strength of Extension |
100 kN |
Structural Features
The continuous tubing hydraulic heavy-duty pulling tool comprises retrieval claws, outer cylinder, upper connector, main spring connection tube, connecting piston, core shaft, secondary spring, nozzle, O-ring, and other sealing components. The upper joint connects to the coiled tubing tool's lower section, while the inner hole's deep end features internal threads that connect to the mandrel, forming the fishing tool's load-bearing structure.
The outer barrel and grab mechanism serve as critical fishing components. The grab remains in a contracted position under spring tension. When the target tool enters the outer cylinder, the salvage claw moves upward, causing outward expansion to securely grasp the tool's salvage neck.
Application Method
- Attach the tools to the coiled tubing assembly and lower into the well
- Upon reaching the target position, grasp the stuck object and apply downward force to dislodge it
- Raise the coiled tubing assembly
- If retrieval proves impossible and the object becomes stuck, inject fluid into the coiled tubing at pressure not less than 1.6 MPa to retract retrieval claws, allowing gravity release of the stuck object
Tools Can Be Manufactured To Any Size Required
Operational Notes
Before well entry, verify sufficient internal pipe string space for retrieval claw deployment. If necessary, perform inner diameter expansion first.
After each operation, inspect O-rings for damage and replace promptly as needed.
About Baoji RuiXin Slickline Tools
Baoji Ruixin Energy Equipment Co., Ltd., established in 2012, is an ISO 9001-2015 and API Q1 certified technology research and development organization specializing in steel wire, cable, and coiled tubing tool design and manufacturing. With robust R&D capabilities, we hold 12 national utility model patents and 1 invention patent, having undertaken multiple scientific research projects.
Quality Assurance
Our steel wire working tools are API certified, manufactured under strict API quality control, environmental, and occupational health management systems. We maintain complete traceability from raw materials through production to final shipment.
Technical Support & Service
We provide on-site technical guidance and collaborate with field engineers to solve technical challenges including material selection, sealing structure optimization, and complex environment incident handling. Our comprehensive after-sales service ensures customer satisfaction.
Welcome to contact us at any time for professional equipment and technical support.
